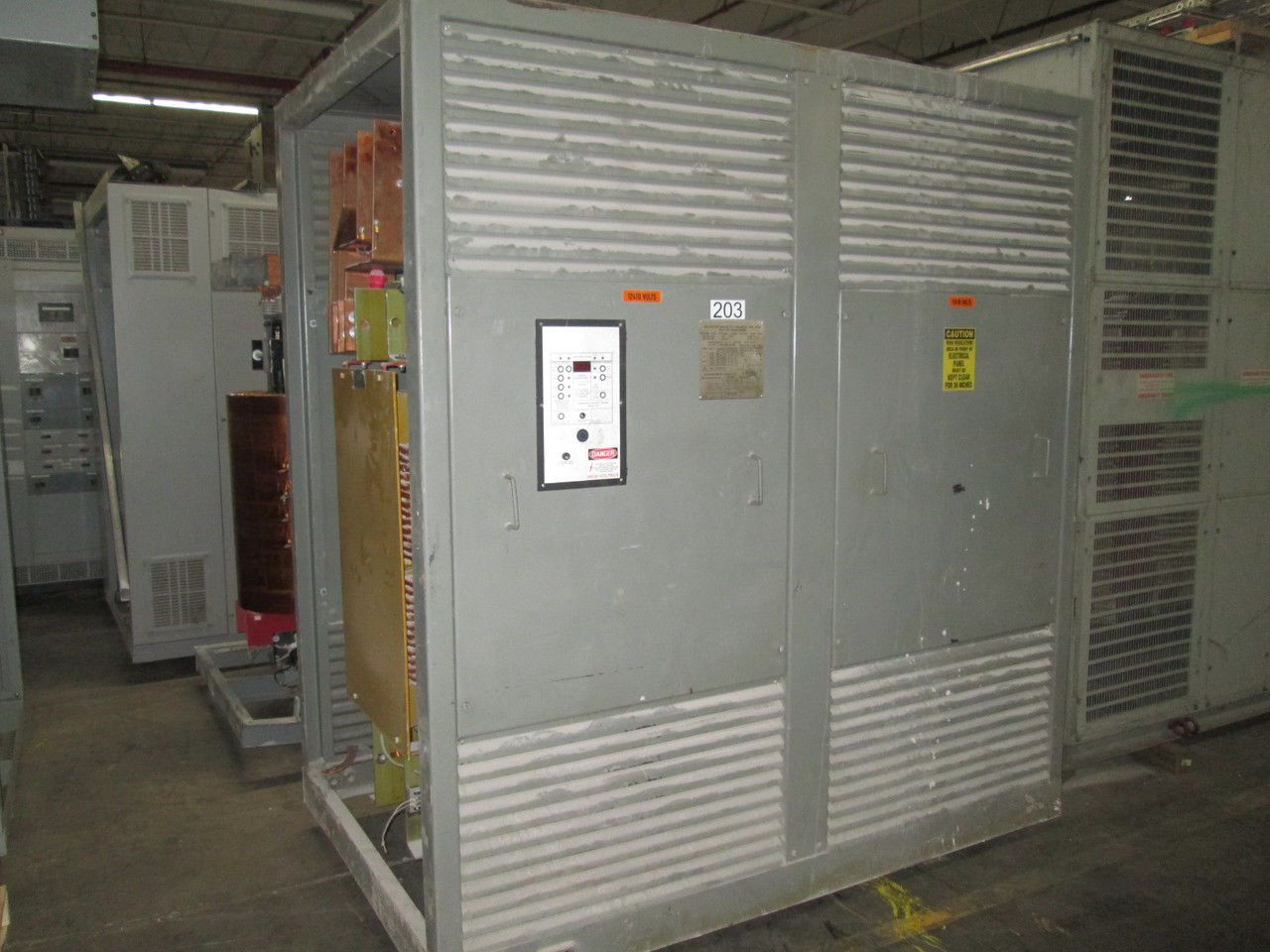

The Electric Service Co. 2000/2666 KVA 12470-480Y/277 Volt Medium Voltage Dry Type Transformer R&G

Product description:

The Electric Service Co. Medium Voltage Dry Type Transformer: 2000/2666 KVA (AA/FA), primary voltage: 12470 volt- BIL 95 KV, secondary voltage: 480/277 volt- BIL 10 KV, 3 phase, 60 Hz, NEMA-1 Indoor. Reconditioned & guaranteed with a one-year warranty.

• 5.6% Impedance @ 135°C
• 220°C Insulation Rise
• Copper Winding
• Taps:
  • 13094, 88.2A (AA), 117.6A (FA)
  • 12782, 90.3A (AA), 120.4A (FA)
  • 12470, 92.6A (AA), 123.5A (FA)
  • 12158, 95.0A (AA), 126.6A (FA)
  • 11847, 97.5A (AA), 129.9A (FA)
• Ser # 65445
• NEMA 1 Enclosure
• 90"H x 84"W x 54"D
• 12500 LBS

LOC: Pillar 145
