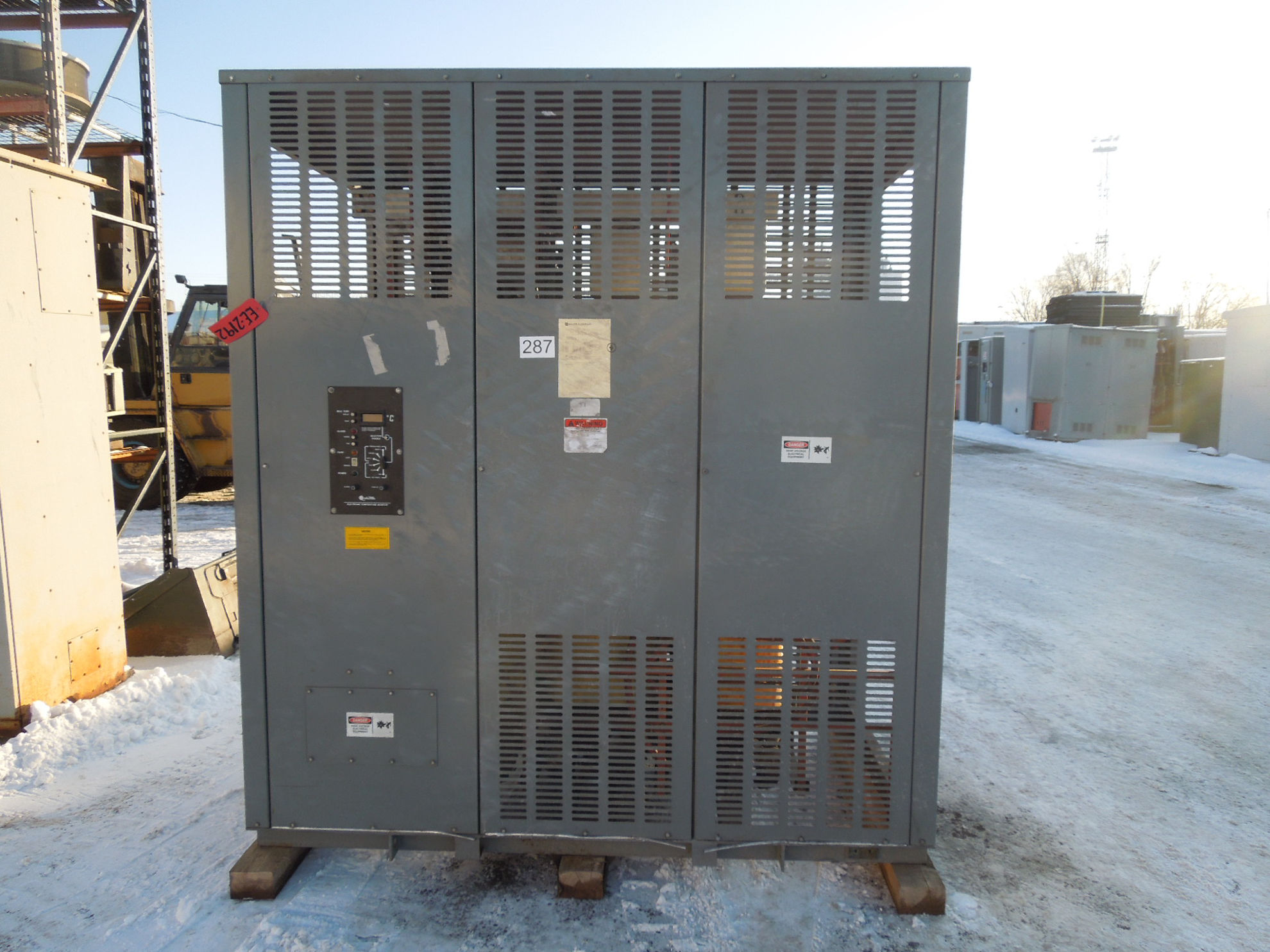

Square D/ Sorgel 2000/2667 KVA 8320-480Y/277 Volt Power-Dry Insulated Medium Voltage Dry Type Transformer R&G

Product description:

Square D / Sorgel Insulated Power Medium Voltage Dry Type Transformer: 2000/2667 KVA, primary voltage: 8320 volt- 60 KV BIL, secondary voltage: 480Y/277 volt- 10 KV BIL-  3207.5 amps (2667 KVA), 3 phase, NEMA 1 indoor. Reconditioned & guaranteed with a one-year warranty.

• High Voltage Taps:
  • 8736 Volts, 176.2 Amps @ 2667KVA
  • 8528 Volts, 180.5 Amps @ 2667KVA
  • 8320 Volts, 185.0 Amps @ 2667KVA
  • 8112 Volts, 189.8 Amps @ 2667KVA
  • 7904 Volts, 194.78 Amps @ 2667KVA
• 60 Hz
• 150°C Rise
• Impedance 5.86% @ 2000KVA
• MFG Date 6/1998
• Serial # 984093-VA
• High Voltage/Low Voltage Windings: Aluminum
• Dimensions: 94" High 84" Wide 54" Deep
• 9800 LBS

(MVDT# 287    LOC: EMSCO North)
