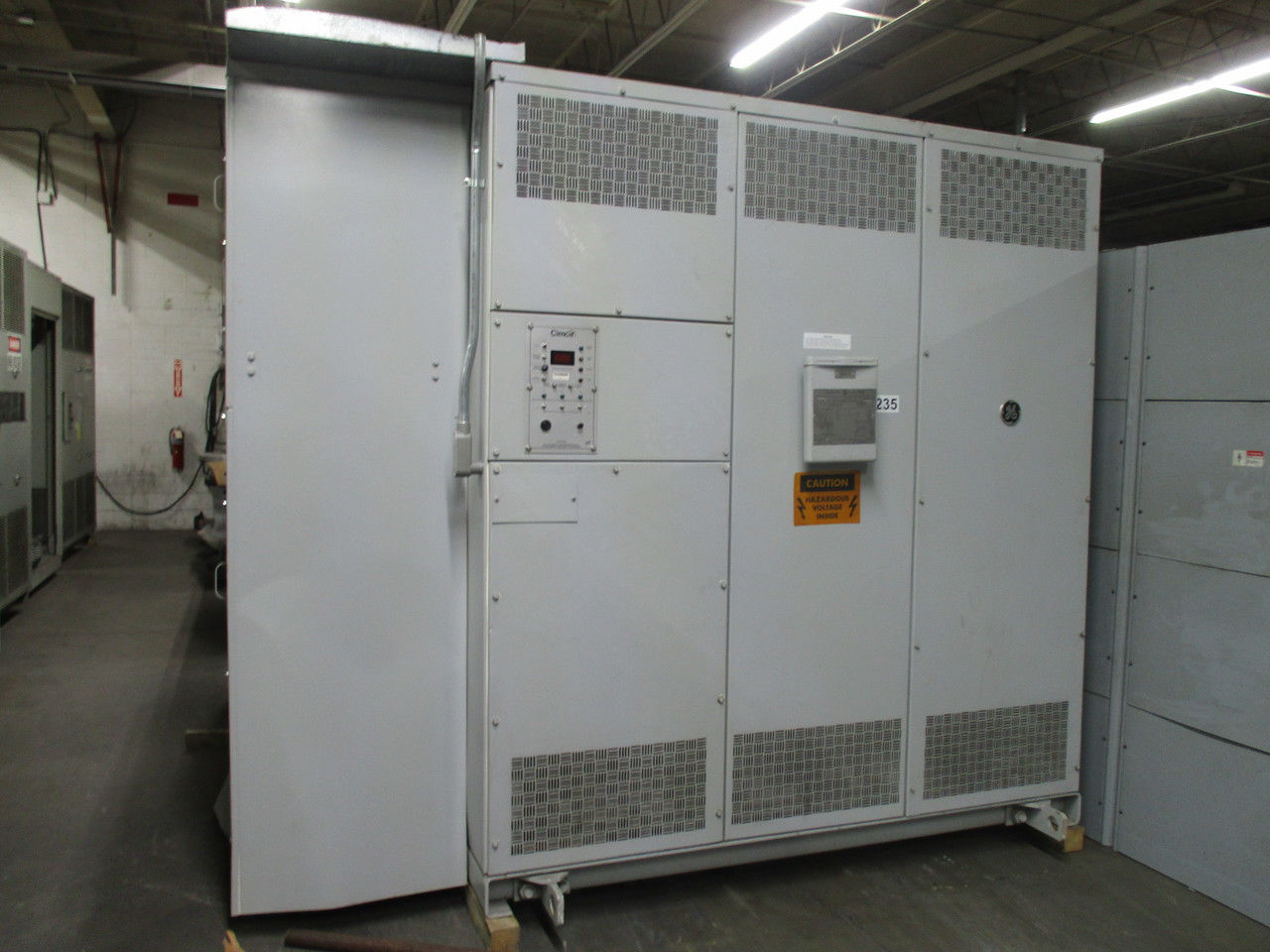

GE 2000/2800 KVA 12470-480Y/277 Volt Cast Epoxy Resin Medium Voltage Dry Type Transformer R&G

Product description:

General Electric Cast Epoxy Resin Medium Voltage Dry Type Transformer: 2000 KVA (Continuous Self Cooled) / 2800 KVA (Continuous Forced Air (FA)), primary voltage: 12470 volt, secondary voltage: 480Y/277 volt, 3 phase, 60 hz, NEMA 1 indoor. Reconditioned & guaranteed with a one-year warranty.

• BIL: High Voltage - 95KV ; Low Voltage - 10KV
• Imp: 6.08% @ 2000 KVA
• Secondary Voltage: 100°C Rise
• Primary Voltage: 80°C Rise
• Cu Wound
• SER # R 275978 B
• Taps & Amperage @ 2800 KVA:
  • 13090V, 124A
  • 12780V, 126A
  • 12470V, 130A
  • 12160V, 133A
  • 11850V, 136A
• 3370 Amps @ 480 Volts (2800KVA)
• NEMA 1 Enclosure
• 100"H x 90"W x 58"D
• 14100 LBS
• Transformer Enclosure Only Has Pull section on Left Side (28"W x 38"D)

LOC: Pillar 174
