DB Medium Voltage Oil Filled Transformer- 2600 KVA 34500-416GrdY/240V 3 Ph & Eaton Pow-R-Line Switchboard- 4000A 415/240V 3 Ph 4 W 3R

Product description:

DB Medium Voltage Oil Filled Transformer; 2600 KVA, 34500-416GrdY/240 Volt, 3 phase, NEMA 3R outdoor. Used Electrically Okay

Eaton Pow-R-Line Switchboard; 4000 amp, 415/240 volt, 3 phase, 4 wire, NEMA 3R outdoor. With Breaker Distribution. Used Electrically Okay.

Transformer

• DB Transformer
• Three Phase Loop Pad Mounted Type
• 2600 KVA
• FR3 Fluid - 537 Gallon
• BIL: 150/3
• High Voltage: 34500 Delta
• Low Voltage: 416 GrdY/240
• Bayonet Fuse: 4000380C14CB
• LB Switch: 35kV, 300 Amp
• Current Limiting Fuse: CBUC38140D100
• Deadbreak HV Bushing: 35kV, 600A
• Aluminum Wound
• Taps
  • 36225 Volts; 41.44 Amps
  • 35363 Volts; 42.45 Amps
  • 34500 Volts; 43.51 Amps
  • 33638 Volts; 44.63 Amps
  • 32775 Volts; 45.80 Amps
• 13999 LBS
• Impedance & Serial # May Vary

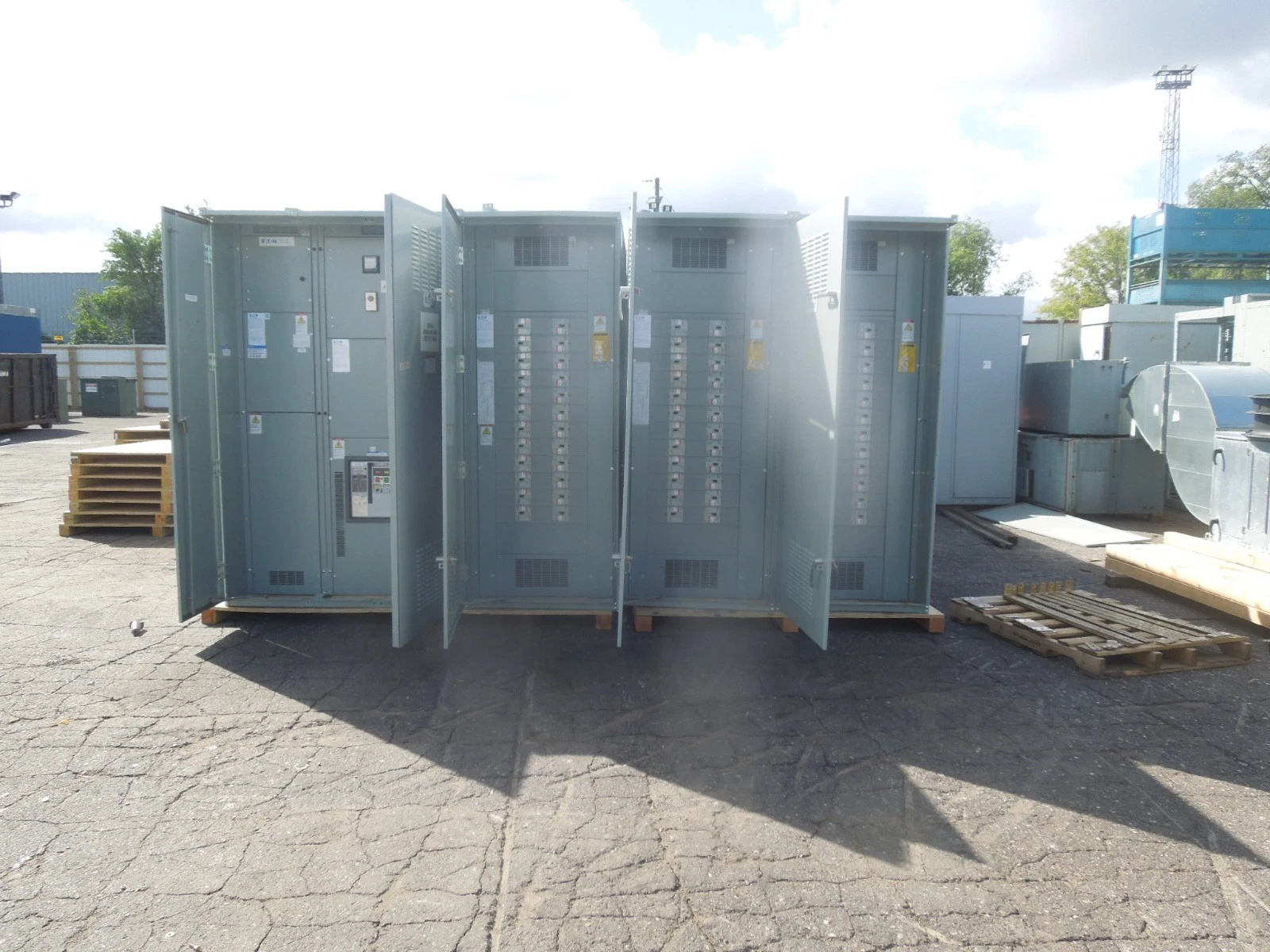

Switchboard:

• Eaton
• Pow-R-Line
• PRL-C
• 4000 Amp
• 3 Phase
• 415/240 Volt
• Main Breaker:
  • Magnum SB SBNC4N Insulated Case
  • Cat # SBNC4N3HEA 40CMA NAN4E NNNFX
  • Electrically Operated: 110-125 VAC Motor Operator
  • 4A/4B Aux Switches
  • 5ARMLSIG Trip Unit
  • Ground Fault
  • Arc Flash Reduction Setting
  • w/ (48) HFD3080- 80 Amps 3 Pole Breaker Distribution
• 3R Outdoor Enclosure
• Dimensions: 164" Width x 62" Depth x 91" Height

Used Electrically Okay

LOC: Outdoors            QTY: 15 (Each)
