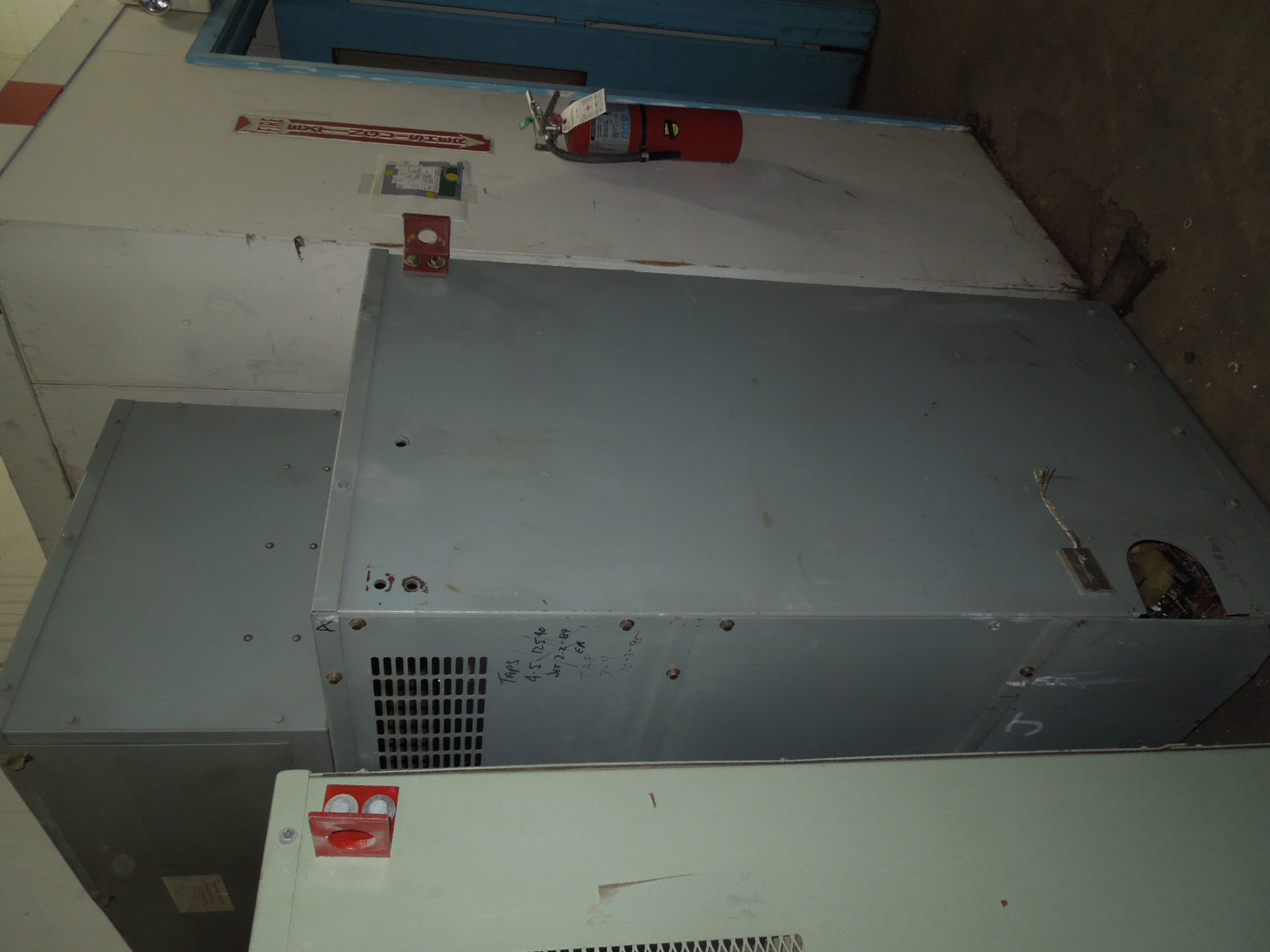

Federal Pacific 500 KVA 13200-480Y/277 Volt Medium Voltage Dry Type Transformer R&G

Product description:

Federal Pacific Medium Voltage Dry Type Transformer; 500 KVA, primary voltage: 13200 volt, secondary voltage: 480Y/277 volt, 3 phase, 60 Hz, NEMA 1 indoor rated. Reconditioned & guaranteed with a one-year warranty.

• Serial # 50188-006
• 100°C Temp Rise
• 5.56 Impedence %
• Taps:
  • 13200
  • 12870
  • 12540
  • 12210
  • 11880
• NEMA 1 Enclosure
• 4100 lbs
• Aluminum Wound
