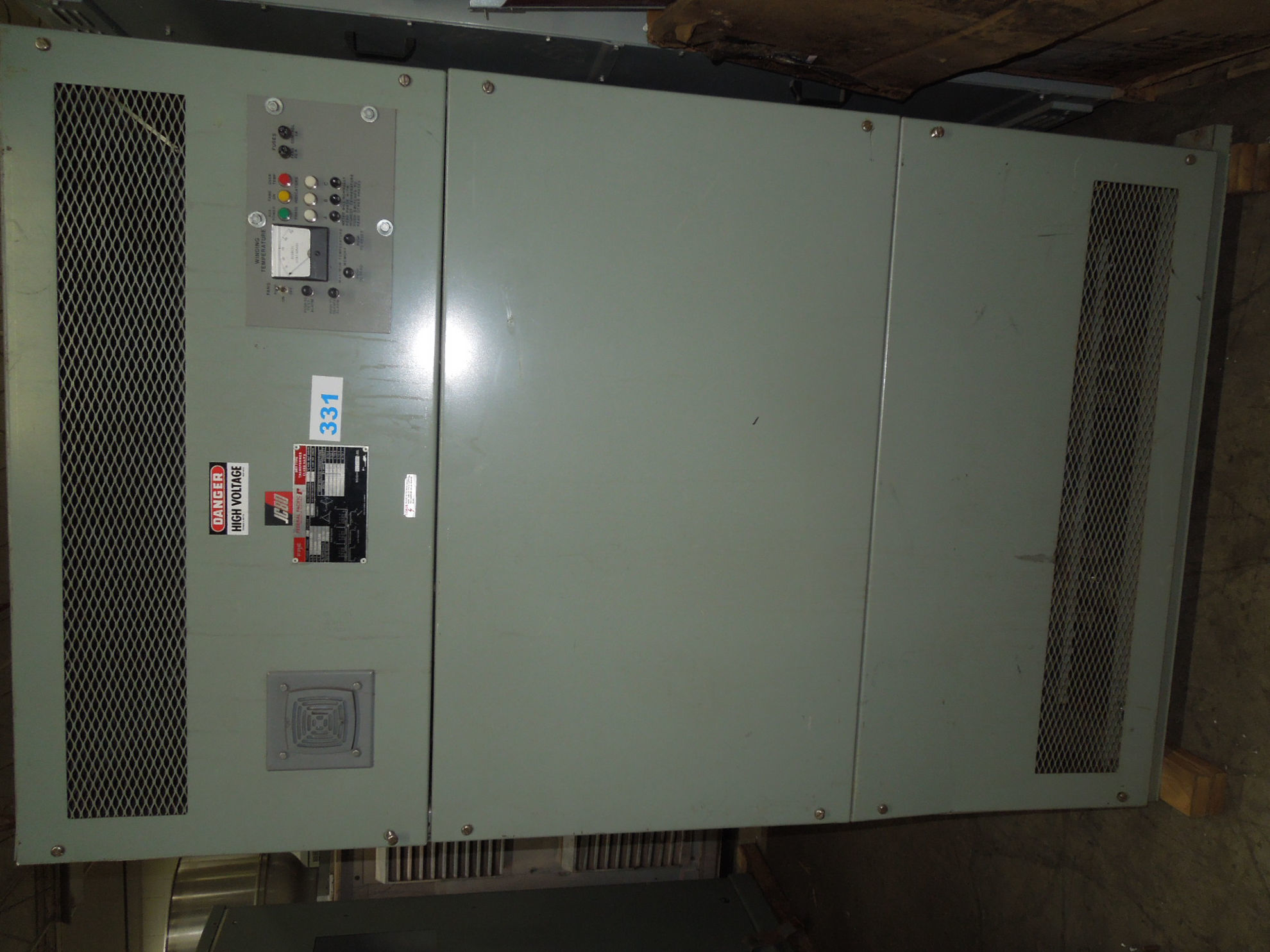

FPE 300/400 KVA 4160-208Y/120 Volt Medium Voltage Dry Type Transformer R&G

Product description:

Federal Pacific Electric Medium Voltage Dry Type Transformer; 300/400 KVA, primary voltage: 4160 volt, secondary voltage: 208Y/120 volt, 3 phase, 60 Hz, NEMA 1 indoor rated. Reconditioned & guaranteed with a one-year warranty.

• Model # 11035-001
• Impedance: 5.52%
• 150°C Temp Rise
• Conductor:
  • Taps:
    • 4368V
    • 4264V
    • 4160V
    • 4056V
    • 3952V
• NEMA 1 Enclosure
• Weight: 1615 lbs

Dimensions: 81.25"H x 50"W x 38"D
