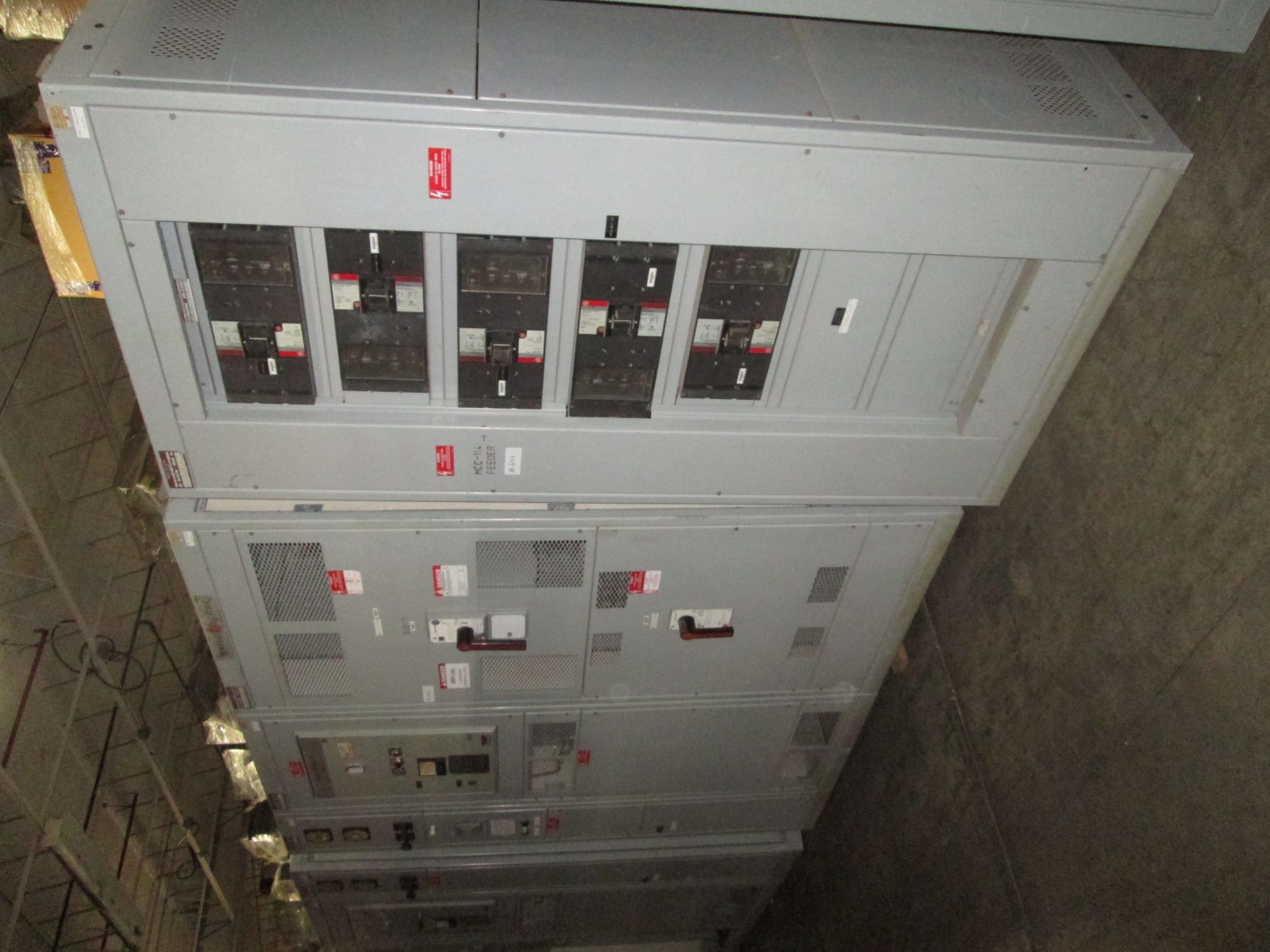

GE Power Break AV-Line Switchboard Main-Tie-Main 3000 amp 480 Volt AC 3 Ph 3 W NEMA 1 R&G

Be the first to review this product

Product description:

General Electric Power Break AV-Line Switchboard; Main-Tie-Main TPYY8630 main breaker, 3000 amp, 480 volt AC, 3 phase, 3 wire, LSIG functions, ground fault, NEMA 1 indoor rated. With (2) sections of breaker distribution. Reconditioned & guaranteed with a one-year warranty.

6 Sections: From Right to Left

Distribution 1 Panel

Breaker Distributions
- (2) 1200 Amp
  - Cat# TKH12S
  - 480 Volt AC
  - 3 Pole
- RMS-9 MicroVersaTrip Plus Trip Unit
  - LSI functions
  - Cat# TS20LSIT1
  - 1200 Amp Rating Plug
    - Cat# TR12S1200K
- (3) 800 Amp
  - Cat# TKH8S
  - 480 Volt AC
  - 3 Pole
- RMS-9 MicroVersaTrip Plus Trip Unit
  - LSI functions
  - Cat# TS20LSIT1
  - 800 Amp Rating Plug
    - Cat# TR8S800K

Main Breaker 1 Panel

(1) 3000 Amp Power Break
- Cat# TPYY8630
- 480 Volt AC
(1) 2000 Amp Power Break
- Cat# TP2020SSH
- 480 Volt AC

Incoming wire/ ground fault 1 Panel

AMP Meters
Ground Fault Control
- - DS9181WBD0008BXXX1
  - Line Volts- 480
  - Control Volts- 120

Incoming wire/ ground fault 2 Panel

AMP Meters
Ground Fault Control
- - DS9181WBD0008BXXX1
  - Line Volts- 480
  - Control Volts- 120

Main Breaker 2 Panel

(1) 3000 Amp Power Break
- Cat# TPYY8630
- 480 Volt AC

Distribution 2 Panel

Breaker Distributions
- (2) 1200 Amp
  - Cat# TKH12S
  - 480 Volt AC
  - 3 Pole
- RMS-9 MicroVersaTrip Plus Trip Unit
  - LSI functions
  - Cat# TS20LSIT1
  - 1200 Amp Rating Plug
    - Cat# TR12S1200K
- (3) 800 Amp
  - Cat# TKH8S
  - 480 Volt AC
  - 3 Pole
- RMS-9 MicroVersaTrip Plus Trip Unit
  - LSI functions
  - Cat# TS20LSIT1
  - 800 Amp Rating Plug
    - Cat# TR8S800K
