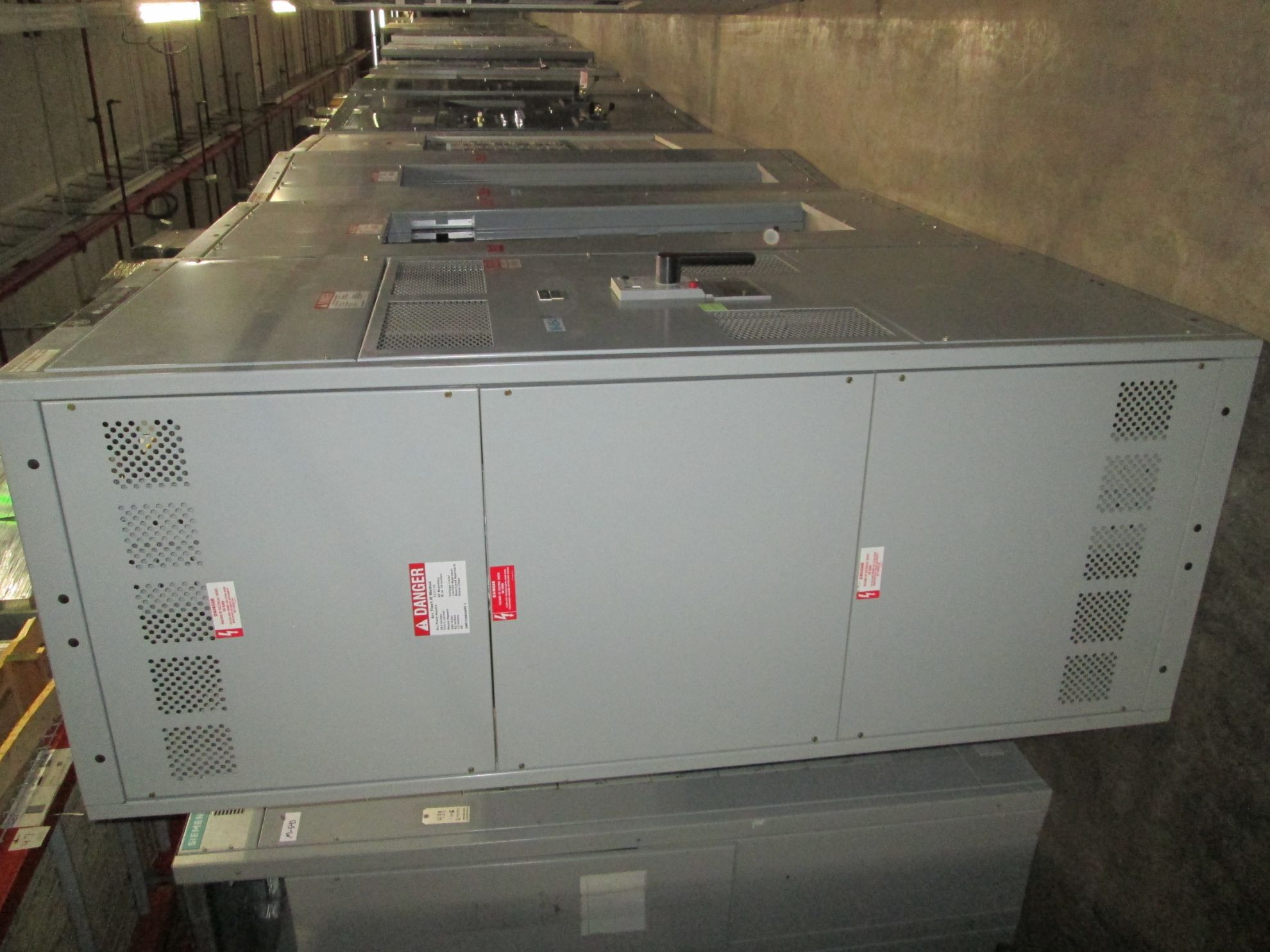

GE Power Break Switchboard 3000 Amp 480Y/277 Volt 3PH 4W NEMA 1 R&G

Product description:

General Electric Power Break Switchboard; 3000 amp main breaker, cat# TP3030SS, LSIG functions, 480Y/277 volt AC, three phase, four-wire, NEMA 1 indoor rated. With 2 sections of breaker distribution. Reconditioned & guaranteed with a one year warranty.

3 Sections: From Left to Right

Power Break Main Panel

• Cat# TP3030SS
• 3000 Amp
• 480Y/277 Volt
• Serial# 123458
• 3 Phase
• 4 Wire
• RMS-9 MicroVersaTrip
  • Cat# TS32LSIG
  • LSIG Functions
  • Ground Fault
  • Rating Plug
    • 3000 Amp
    • Cat# TR30S3000

Breaker Distribution Panel 1

• (1) 1200 Amp
  • Cat# TKH12S
  • 480 Volt
  • 3 Pole
  • RMS-9 MicroVersaTrip
    • Cat# TS20LSIT1
    • LSI Functions
    • Rating Plug
      • 1200 Amp
      • Cat# TR12S1200K

• (1) 800 Amp
  • Cat# THP88SSE1
  • 480 Volt
  • Control Voltage- 120 VAC
  • RMS-9 MicroVersaTrip
    • Cat# TS20LSIGT2
    • LSIG Functions
    • Rating Plug- TR8S800
• (1) 400 Amp
  • Cat# TLB434400
  • 480 Volt
  • 3 Pole
  • 400 Amp Trip Unit

Breaker Distribution Panel 2

• (1) 80 Amp
  • Cat# TEL136080Wl
  • 480 Volt AC
  • 3 Pole
• (1) 60 Amp
  • Cat# TEL136060WL
  • 480 Volt AC
  • 3 Pole

Dimensions: 3 Sections (From Right to Left)

• Power Break Main Panel

  • 40" Width
  • 35" Depth
  • 90" Height

• Distribution 1
  • 45" Width
  • 35" Depth
  • 90" Height

• Distribution 2
  • 35" Width
  • 35" Depth
  • 90" Height

(M-654               LOC: Pillar 146/ 156)
