Product description:

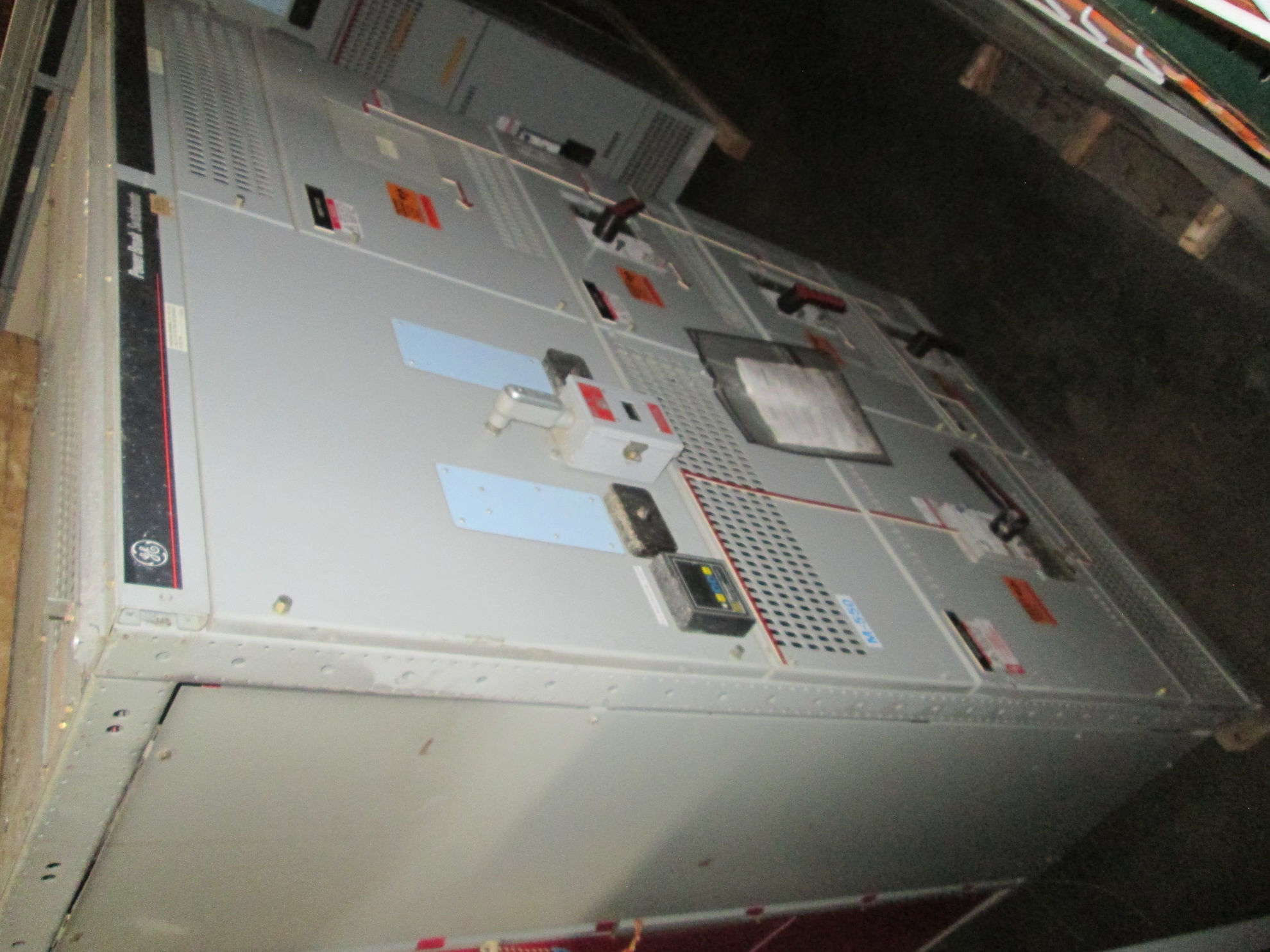

General Electric Power Break Switchboard; Main-Tie-Main TC4040TTHZR, 4000 amp, 480Y/277 volt AC, 3 pole, ground fault, NEMA 1 indoor rated. With Power Break I breaker distribution. Reconditioned & guaranteed with a one-year warranty.
5 Sections: From Left to Right
Main Breaker 1 Panel
- A.C. Kilowatthour Meter
- PowerLogic Power Meter
- Power Break Main Breaker
- 4000 Amp
- Cat# TC4040TTHZR
- 480 Volt AC
- MicroVersaTrip Plus Trip Unit
- 4000 Amp Sensor
- Cat# C440LSHGZ2
- Ground Fault
- 3000 Amp Rating Plug
Breaker Distribution 1 Panel
- (2) 1600 Amp Power Break
- Cat# TC1616TTZR
- 480 Volt AC
- MicroVersaTrip Plus Trip Unit
- 1600 Amp Sensor
- Cat# C316LSIGZ2
- Ground Fault
- 1000 Amp Rating Plug
- (1) 800 Amp Power Break
- Cat# TC88TTZR
- 480 Volt AC
- MicroVersaTrip Plus Trip Unit
- 800 Amp Sensor
- Cat# C200LSIGZ2
- Ground Fault
- 800 Amp Rating Plug
Tie Breaker Panel
- Electronic Power Meter
- 4000 Amp Power Break
- Cat# TC4040TTHZR
- 480 Volt AC
- MicroVersaTrip Plus Trip Unit
- 4000 Amp Sensor
- Cat# C440LSHGZ2
- Ground Fault
- 3000 Amp Rating Plug
Breaker Distribution 2 Panel
- (2) 1600 Amp Power Break
- Cat# TC1616TTZR
- 480 Volt AC
- MicroVersaTrip Plus Trip Unit
- 1600 Amp Sensor
- Cat# C316LSIGZ2
- Ground Fault
- 1000 Amp Rating Plug
- (1) 800 Amp Power Break
- Cat# TC88TTZR
- 480 Volt AC
- MicroVersaTrip Plus Trip Unit
- 800 Amp Sensor
- Cat# C200LSIGZ2
- Ground Fault
- 800 Amp Rating Plug
Main Breaker 2 Panel
- A.C. Kilowatthour Meter
- PowerLogic Power Meter
- Power Break Main Breaker
- 4000 Amp
- Cat# TC4040TTHZR
- 480 Volt AC
- MicroVersaTrip Plus Trip Unit
- 4000 Amp Sensor
- Cat# C440LSHGZ2
- Ground Fault
- 3000 Amp Rating Plug
Dimensions:
All 5 sections are the same dims
- 30" Width
- 60" Depth
- 90" Height
