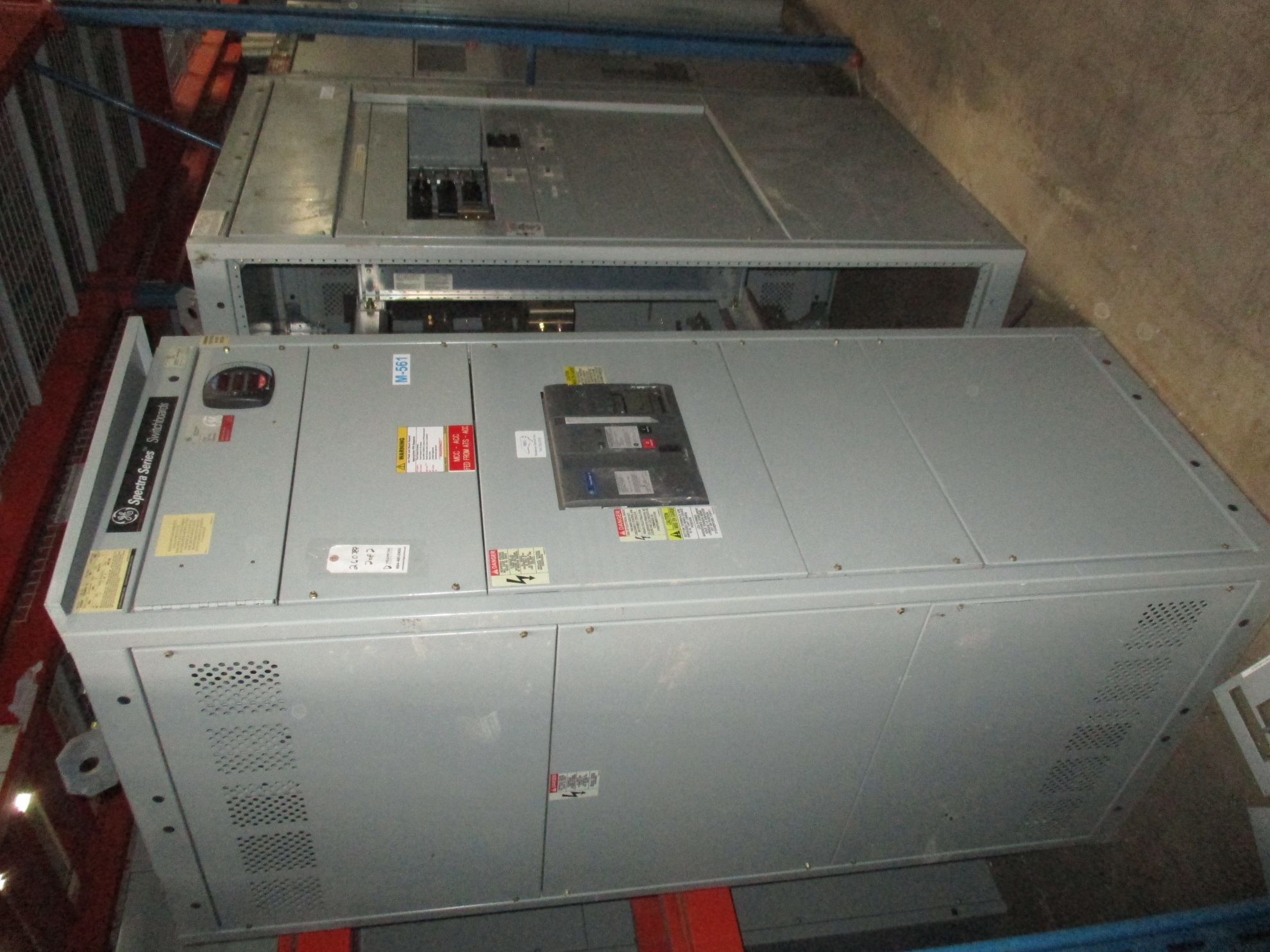

General Electric Spectra Series Switchboard SSD16Y216 | 1600 Amp Main Breaker | 480Y/277V 3-Phase 4-Wire | NEMA 1 R&G

Product description:

General Electric Spectra Series Switchboard; 1600 amp main breaker- cat # SSD16Y216, 480Y/277 volt, 3 phase, 4 wire, NEMA 1 indoor rated. With (1) section of spectra breaker distribution. Reconditioned & guaranteed with a one-year warranty.

2 Sections: From Left to Right

Main Breaker Panel

• Multilin EPM 6000 Power Meter
• 1600 Amp Main Breaker
  • Cat # SSD16Y216
  • Rating Plug Type: TR16C
    • 1200 Amp
    • Cat # TR16C1200

Breaker Distribution Panel

• (1) 100 Amp
  • Cat # FBH36TE100R2
• (1) 60 Amp
  • Cat # FCH36TE060R
• (1) 25 Amp
  • Cat # FCH36TEC025R

Dimensions:

• Main Panel
  • 30" Width
  • 35" Depth
  • 78" Height

• Distribution
  • 45" Width
  • 35" Depth
  • 78" Height

M-561             LOC: Pillar 115 (D-3)
