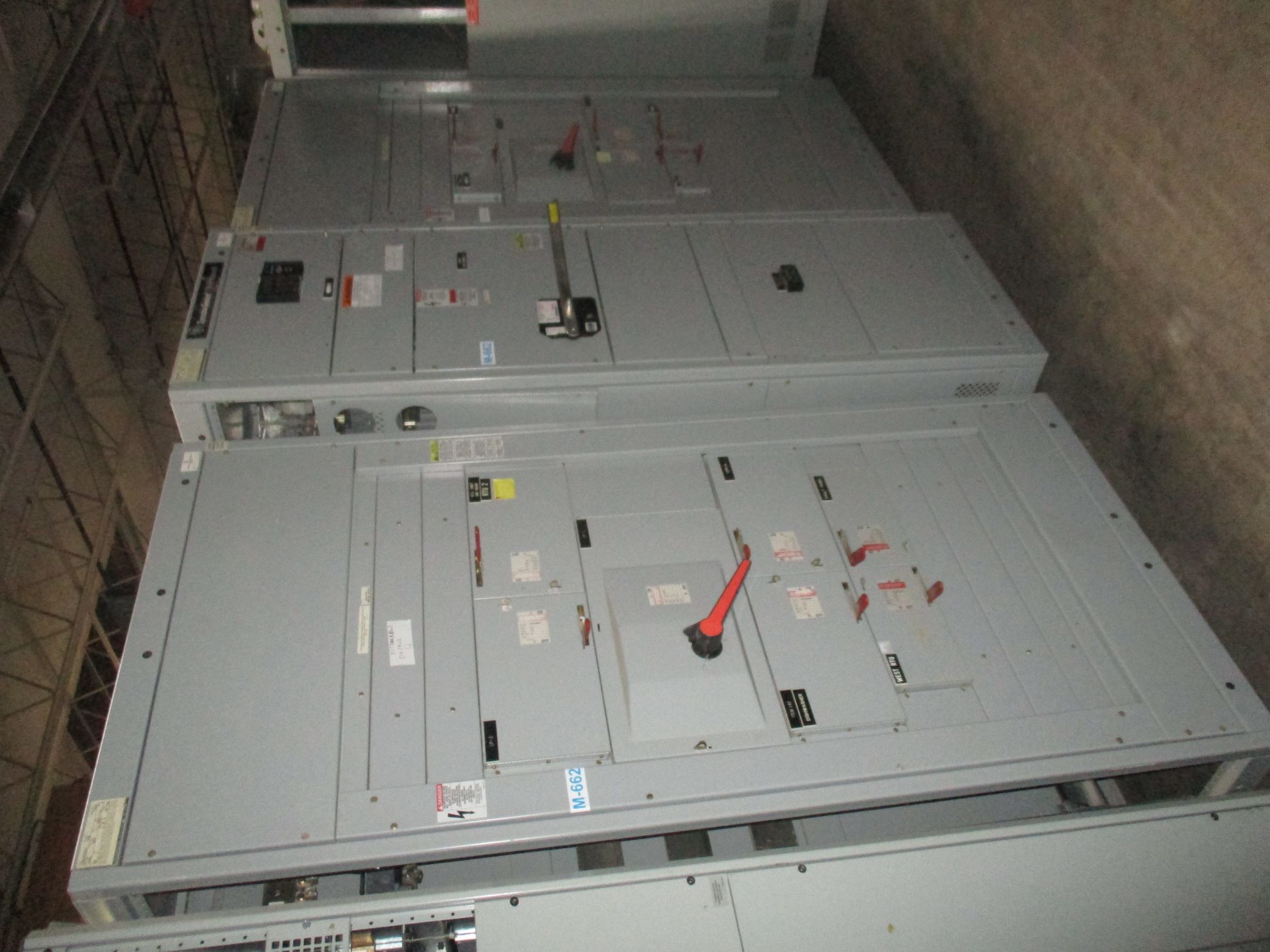

GE Spectra Series Switchboard 1600 Amp Fusible Main 208Y/120 Volt 3 Ph 4W NEMA 1 R&G

Product description:

General Electric Spectra Series Switchboard; 1600 amp Pringle switch fusible main, 208Y/120 volt, 3 phase, 4 wire, NEMA 1 indoor rated. With 2 sections of fusible distribution. Reconditioned & guaranteed with a one-year warranty.

3 Sections:

Fusible Main ( In the Middle)

• 1600 Amp Pringle Switch Main
  • Cat # QA-1633
  • 208 Volt
• PQM Power Quality Meter
• Fuse Status Indicator

Fusible Distribution 1 Panel (Right)

• (2) 600 Amp
  • ADS32600HB
  • 240 Volts
• (2) 200 Amp
  • ADS32200HD
  • 240 Volts
• (2) 100 Amp
  • ADS32100HD
• (2) 60 Amp
  • ADS32060HD
  • 240 Volts

Fusible Distribution 2 Panel

• (1) 600 Amps
  • ADS32600HB
  • 240 Volts
• (4) 200 Amps
  • ADS32200HD
  • 240 Volts
• (2) 100 Amps
  • ADS32100HD
  • 240 Volts

Dimensions:

• Main Panel
  • 30" Width
  • 30" Depth
  • 90" Height

• Dist 1 Panel
  • 45" Width
  • 30" Depth
  • 90" Height

• Dist 2 Panel
  • 45" Width
  • 30" Depth
  • 90" Height

M-662                 LOC: Pillar 124 (F-2)
