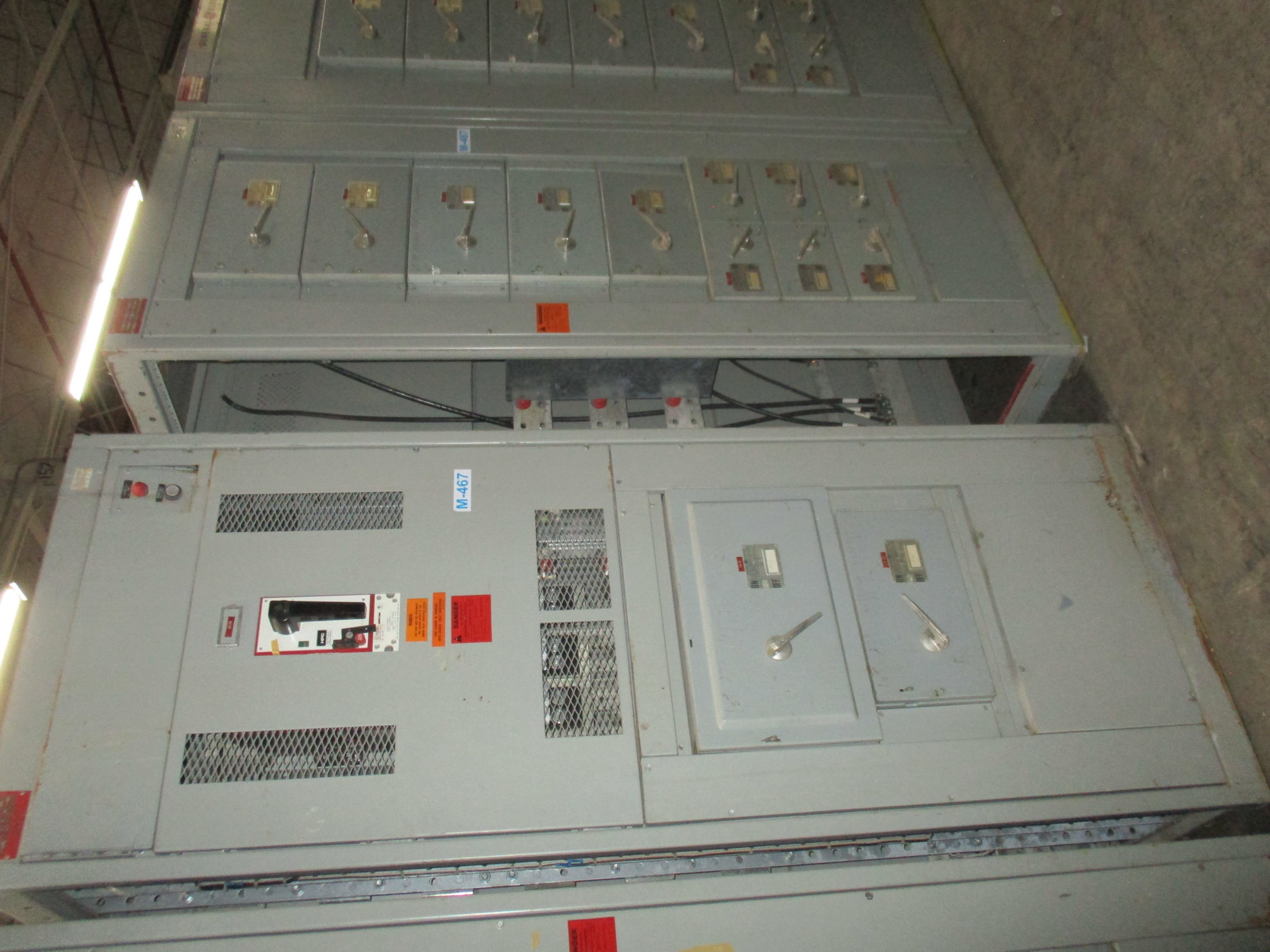

General Electric AV-Line THPR3416ET1 Switchboard 1600A 480Y/277V W/GF NEMA 1 R&G

Product description:

General Electric AV-Line THPR3416ET1 Switchboard; 1600 amp high pressure contact switch, 480Y/277 volt AC, three pole, three phase, four wire, ground fault, NEMA 1 indoor. Reconditioned and guaranteed with a 1 year warranty.

General Electric Main Fusible Section

• High Pressure Contact Switch
  • Cat# THPR3416ET1
  • 1600 Amp
  • 480 Volt AC
  • 3 Pole
• three phase
• four wire
• ground fault
• Distribution
  • (1) QMR365
    • 400 Amp
    • 480 Volt AC
    • 3 Pole
  • (1) QMR364
    • 200 Amp
    • 480 Volt AC
    • 3 Pole

General Electric Fusible Distribution Section

• (5) QMR324
  • 200 Amp
  • 240 Volt AC
  • 3 pole

• (2) QMR323L
  • 100 Amp
  • 240 Volt AC
  • 3 Pole

• (2) QMR323
  • 100 Amp
  • 240 Volt AC
  • 3 Pole

• (1) QMR322
  • 60 Amp
  • 240 Volt AC
  • 3 Pole

• (1) QMR321L
  • 30 Amp
  • 240 Volt AC
  • 3 Pole

Dimensions: From Left to Right

• Main Fusible Section
  • 35" Width
  • 26" Depth
  • 90" Height

• Distribution Section
  • 35" Width
  • 26" Depth
  • 90" Height

M-467      LOC: Pillar 156
