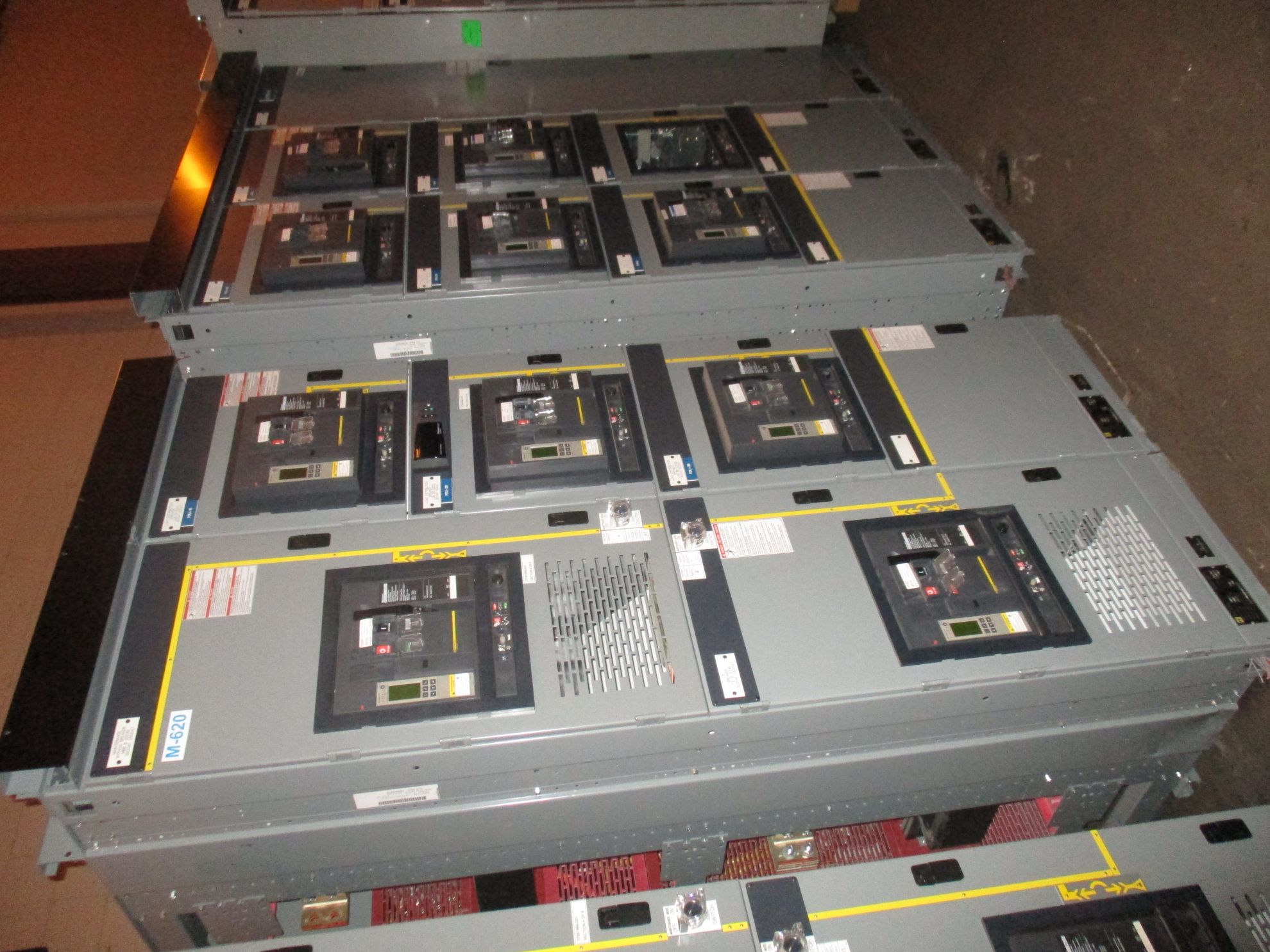

Square D Power-Zone Switchboard 3200 Amp 480 Volt 3Ph 3W NEMA 1 R&G

Be the first to review this product

Product description:

Square D Power-Zone Switchboard; 3200 amp, 480 volt AC, 3 phase, 3 wire, arc flash reduction, LSIG functions, ground fault, NEMA 1 indoor. Reconditioned & guaranteed with a one-year warranty.

3 Sections: From Left to Right

Breaker (1) Panel

Surgelogic Surge Protective Device
(1) 3200 Amp MasterPact Breaker
- NW32H3
- 480 Volt AC
- Cat# WA6JJR64A3DFFFXXCAT
- Micrologic 6.0P Trip Unit
  - 3200 Amp
(1) 3200 Amp MasterPact Breaker
- NW32H3
- 480 Volt AC
- Cat# WA6JGR64A3DFFFXXCAT
- Micrologic 6.0P Trip Unit
  - 2500 Amp
(3) 1600 Amp MasterPact Breaker
- NW16H3
- 480 Volt AC
- Cat# WA6EBR64A3DFFFXXCAT
- Micrologic 6.0P Trip Unit
  - 1000 Amp

Breaker (2) Panel

(2) 3200 Amp MasterPact Breaker
- NW32H3
- 480 Volt AC
- Cat# WA6JGR64A3DFFFXXCAT
- Micrologic 6.0P Trip Unit
  - 2500 Amp
(3) 800 Amp MasterPact Breaker
- NW08H3
- 480 Volt AC
- Cat# WA6ATR64F3DFFFXXCAT
- Micrologic 6.0P Trip Unit
  - 600 Amp

Breaker (3) Panel

(5) 800 Amp MasterPact Breaker
- NW08H3
- 480 Volt AC
- Cat# WA6ATR64F3DFFFXXCAT
- Micrologic 6.0P Trip Unit
  - 600 Amp
(1) 800 Amp MasterPact Breaker
- NW08H3
- 480 Volt AC
- Cat# WA6PPR64A3DFFFXXCAT
- Micrologic 6.0P
  - 250 Amp

Dimensions:

Breaker (1) Panel
