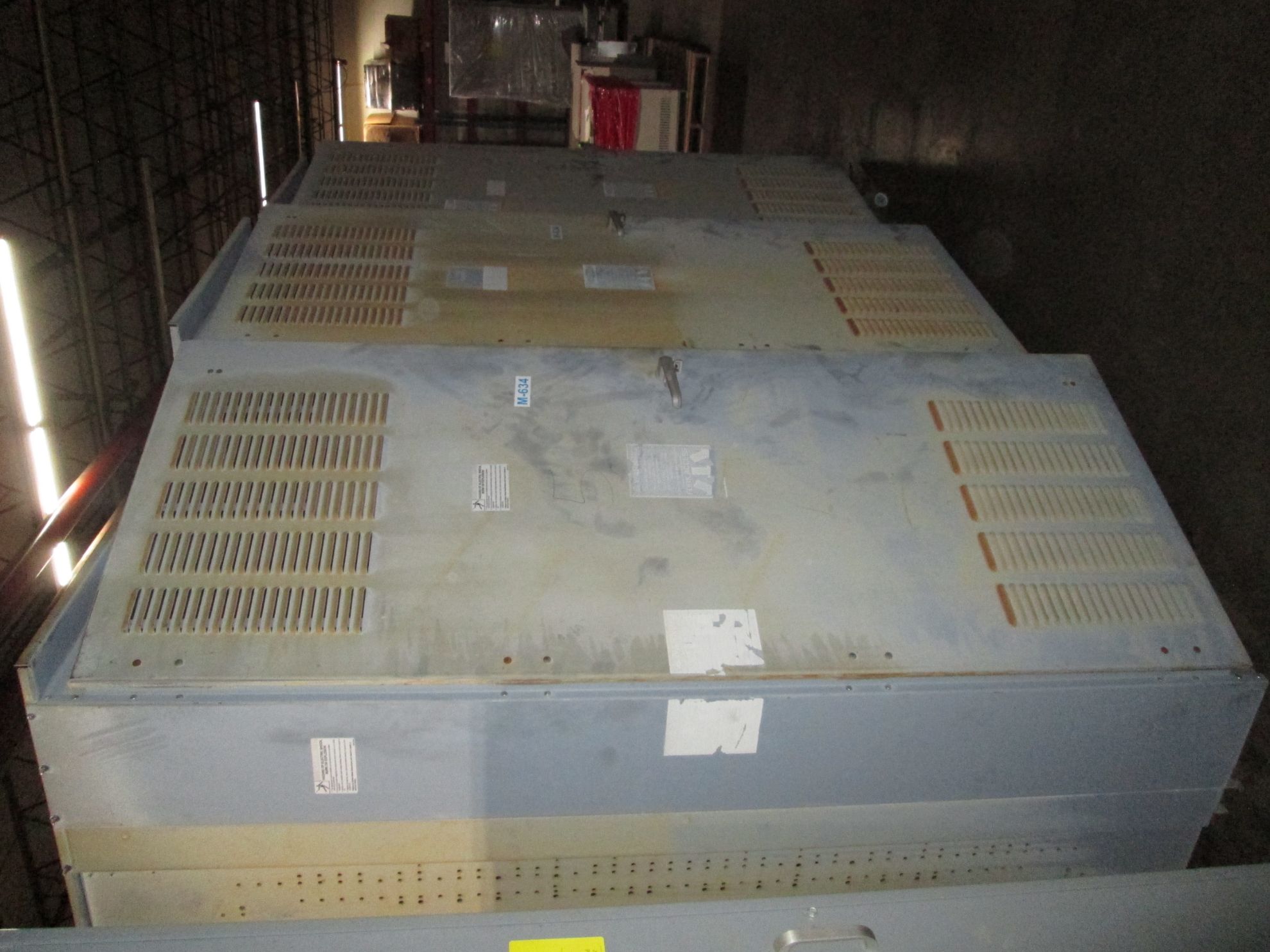

Square D QED Power Style Switchboard 2000 Amp MLO 480Y/277 Volt 3 PH 4 W NEMA 3R R&G

Product description:

Square D QED Power Style Switchboard; 2000 amp main lug only, cat# BP3116I, 480Y/277 volt, 3 phase, 4 wire, NEMA 3R Outdoor rated. With QMBW fusible distribution. Reconditioned & guaranteed with a one-year warranty.

3 Sections:

QMBW Fusible Distribution 1 Panel

• 1600 Amp
• 480Y/277 Volt
• 3 Phase
• 4 Wire
• 60 Hz

Fusible Feeder Section

• Type BP Switch Rating
  • MFG# BP3116I
  • 1600 Amp
  • 208 Volt

QMBW Fusible Distribution 2 Panel

Dimensions: From Left to Right

• Distribution 1 Panel
  • 36" Width
  • 38" Depth
  • 91" Height

• Fusible Feeder Panel
  • 36" Width
  • 38" Depth
  • 91" Height

• Distribution 2 Panel
  • 36" Width
  • 38" Depth
  • 91" Height

M-634                     LOC: Rows 14 & 15
